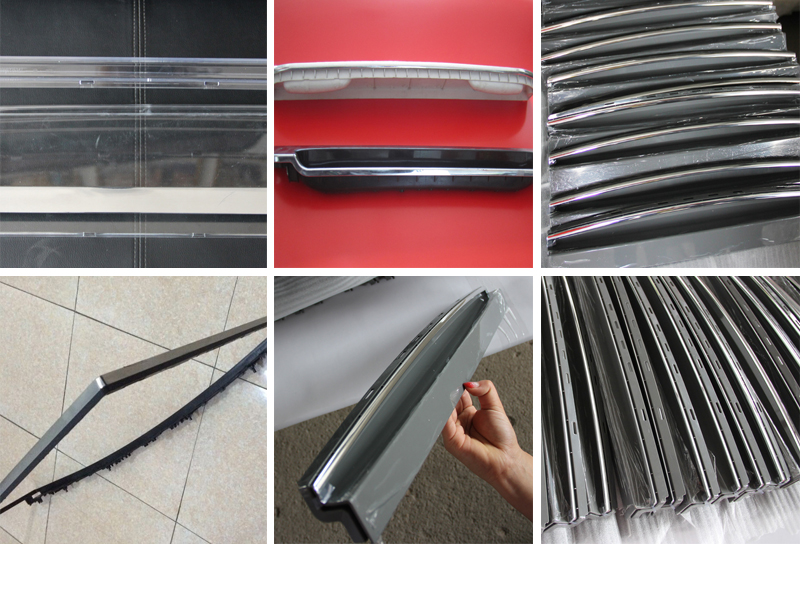

WT-9圓周、異型熱轉印適用Haier568升冰箱瓶座、 冰箱裝飾條等大異型塑料工件的燙印 Circle/Special Shaped Gilding Press Suitable for the gilding of large special plastic component such as the chassis and decoration of refrigerator of Haier 568L |
|
滚烫长度 Gilding length |
700mm |
曲面滚烫长度 Curved rolling length |
Φ150×200mm |
加热功率 Heating power |
4kw |
烫金压力 Gilding pressure |
0.8Mpa |
异型滚烫直径 Special shaped rolling dia. |
Φ400mm |
电压 Voltage |
220v 50Hz |
外形尺寸 Packing size |
1.5×1.2×2.2m |
设备重量 Weight(Net/Gross) |
1.1T/1.25T |
烫金温度 Gilding temperature |
0~300℃ |
热转印辊 Heat roller |
Φ125×300mm |
烫金速度 Gilding speed |
0~9.9s |
